CUSTOM Heat Exchanger Fabrication


Bendel specializes in the custom design and fabrication of Shell & Tube Heat Exchangers, serving customers across a broad range of industries including chemical, pharmaceutical, biotech, personal care, food processing, dairy, refining and more. We have the capabilities and expertise to size, design and fabricate your heat exchanger to the highest standards.

Utilizing advanced HTRI thermal design and Compress software and backed by decades of experience and design expertise, our seasoned team of mechanical and thermal design engineers will work with you to determine the optimal custom solution to meet your specific process requirements.


We understand how important reliability is to maintaining your operations and the need for safe, effective solutions that allow for easy inspection, cleaning and maintenance to ensure safe, reliable operations—and long equipment life.

That’s why all our heat exchangers are designed, inspected and rigorously tested at our facilities to meet stringent pressure, temperature and mechanical design standards including:

  • ASME BPVC – Section VIII, Div 1
  • ASME BPE (bioprocessing equipment) for pharmaceutical applications
  • ASME 3A for sanitary dairy, food and personal care applications
  • FDA


Our experienced engineering and fabrication teams have the knowledge and experience to deliver a broad range of world-class solutions including:

  •  Beer Columns
  • Chillers / Coolers
  • Condensers
  • Crystalizers
  • Dryers
  • Evaporators
  • Fuel Heaters
  • Heat sink
  • Heaters
  • Intercoolers
  • Preheaters
  • Re-boilers
  • Refrigeration
  • Rising Film Evaporators
  • Steam generators
  • Super Heaters
  • Vacuum Condensers
  • Vaporizers

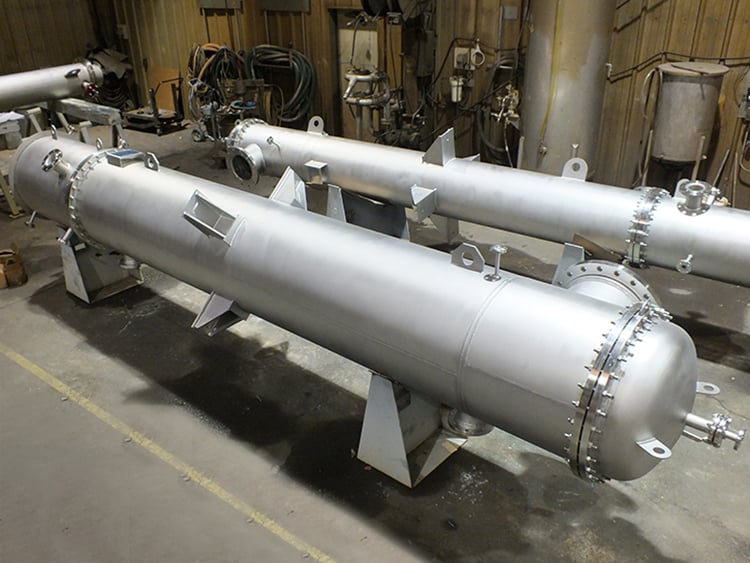

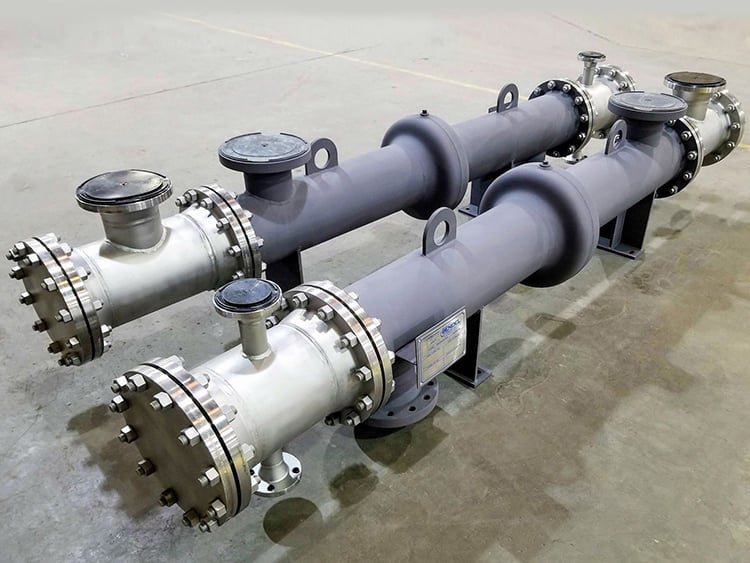

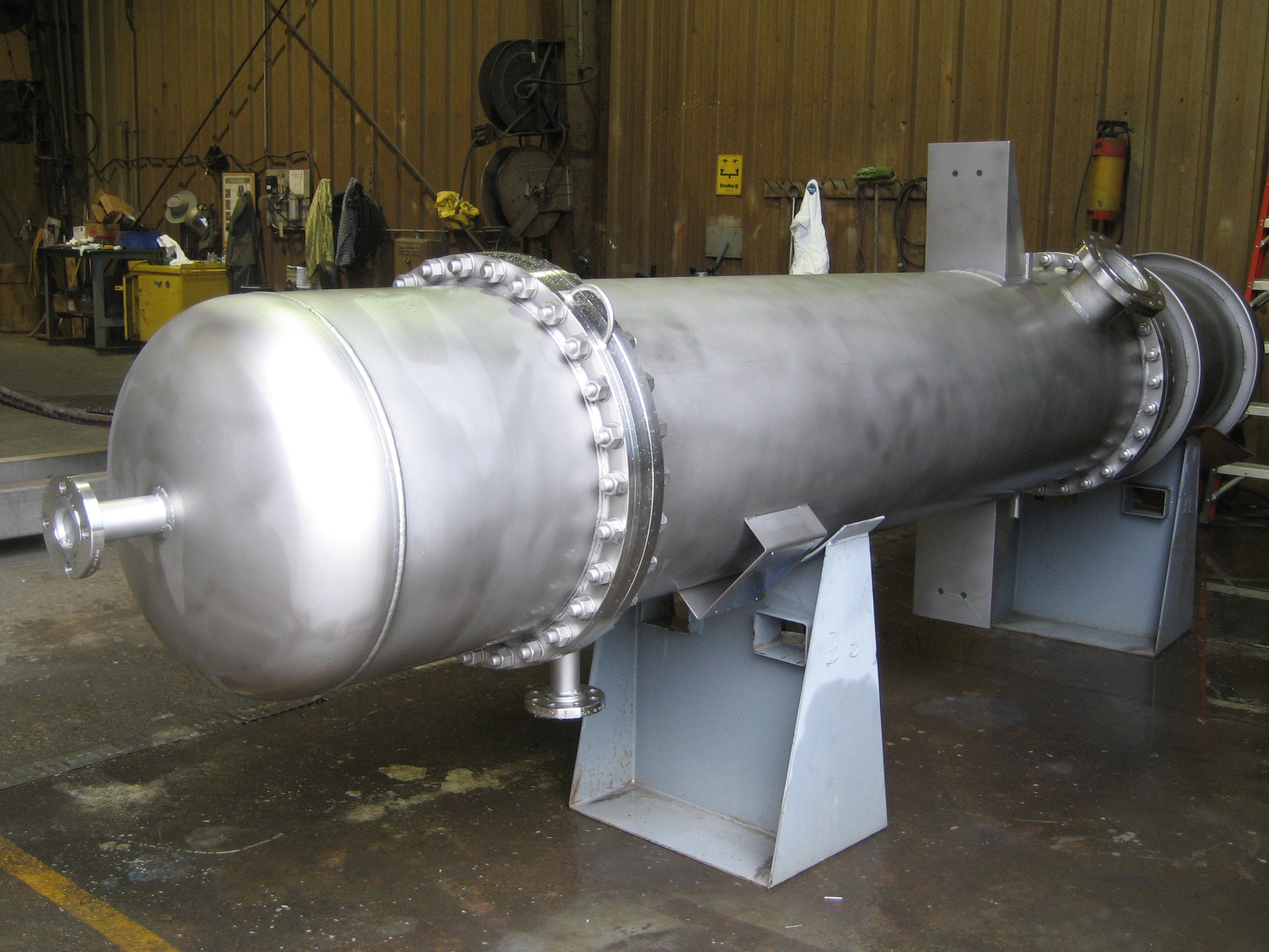

Our Shell & Tube Heat Exchangers can be fabricated from Carbon Steel, Stainless Steel, Nickel Alloy and Duplex

We manufacture a variety of heat exchanger types with options and characteristics to suit virtually any purpose including:

  • Single Pass, Multi Pass
  • Single & Double Tubesheet
  • Parallel-Flow, Counter-Flow
  • With & Without Phase Change
  • Floating & Fixed Head Options
  • Regenerative & Nonregenerative Configurations
  • Expansion Joints
  • Standalone Units, Parallel Units
  • Lined & Unlined Flanges
  • Standard Grade, Sanitary/Food Grade  &  Pharmaceutical Grade Options
  • High Purity Surface Finishes
  • Insulation Jackets

When they entrust a heat exchanger project to us, our clients demand perfection—and we rely on our state-of-the-art Quickmill milling and drilling machine to deliver.  Designed to provide outstanding, close tolerance machining of tubesheets used in the manufacture of our custom Shell & Tubesheet Heat Exchangers, our Quickmill Intimidator improves the quality and performance of every heat exchanger we build.

  • Quickmill Intimidator 96: Superior solution for large part machining and drilling accuracy that provides a powerful, precise tool that performs flawlessly time after time. Bed size of 96” x 185-1/2”


Bendel also offers a full array of custom ASME stainless steel expansion tanks to accommodate expanding fluids and reduce pressure in closed loop heating systems.


Bendel is here to serve you and provide the highest quality custom built Shell & Tube Heat Exchangers to meet your application's requirements. We welcome the opportunity to provide you a quote.

Call us today at: 866-596-5112 to learn more about our custom engineering and fabrication services and talk about your upcoming distillation columns or towers project - or request a quote below.Ready For a Quote?
