ASME Vertical Heat Exchanger



ASME Vertical Heat Exchanger for Petrochem

We recently delivered an ASME Vertical Heat Exchanger to a Petrochemical Customer in Southeast Texas, with the following specifications:

  • Inner Diameter: 23.25"
  • Tube Length: 192"
  • Heat Exchanger Type: BEM
  • Shell Side Material: Carbon Steel
  • Tube Side Material: 316L Stainless Steel
  • Tubesheet Material: 316L Stainless Steel
  • Tubes: (725) 5/8" OD 316L Stainless Steel
  • Baffles, Tie Rods, and Spacers: Carbon Steel


Petrochemical Heat Exchanger Fabrication Project - 2-1
Petrochemical Heat Exchanger Fabrication Project - 4-1
Petrochemical Heat Exchanger Fabrication Project - 3-1
Petrochemical Heat Exchanger Fabrication Project - 1-1

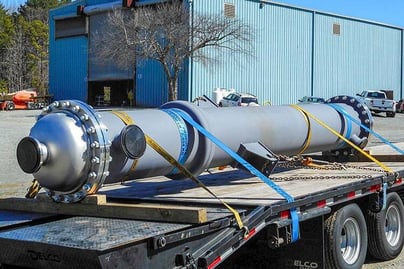

Petrochemical Heat Exchanger Fabrication Project - 5-1
