Bendel's Industrial products can be fabricated with any of the following material finish options. These designations apply to stainless steel sheet, plate, pipe, and bar. Questions? Send us an inquiry here or contact us by phone to learn more: (+1) 866.596.5112

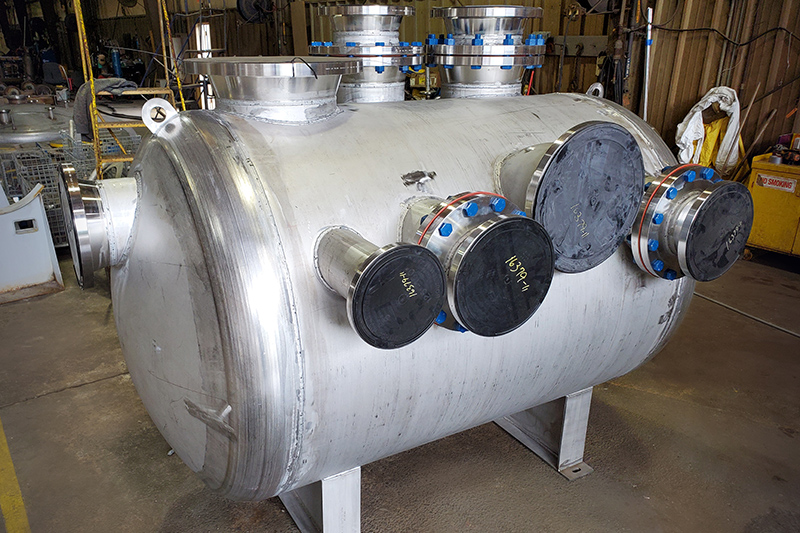

HR - Hot Rolled
Hot Rolled (HR)
Grit: n/a RA Range: n/a
Headline
Add content here.
Rough, dull surface appearance. Most scale removed by pickling. Applies to all steel plate 3/16" and thicker. Specify where surface finish is a low priority.

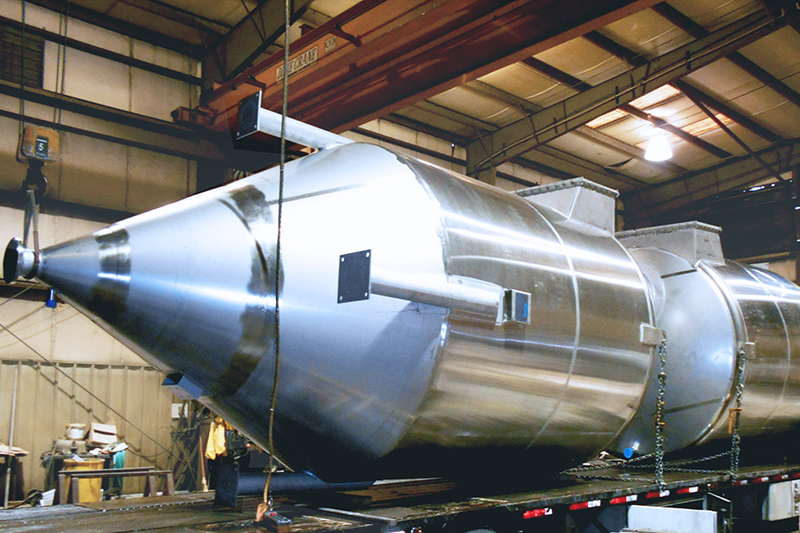

2B - Mill Finish
Mill Finish (2B)
Grit: n/a RA Range: n/a
Headline
Add content here.
A smooth, bright, moderately reflective finish suitable for "as is" specifications or as a preliminary finish for further polishing. Available only in 1/4" or thinner sheet material..
HR - Hot Rolled

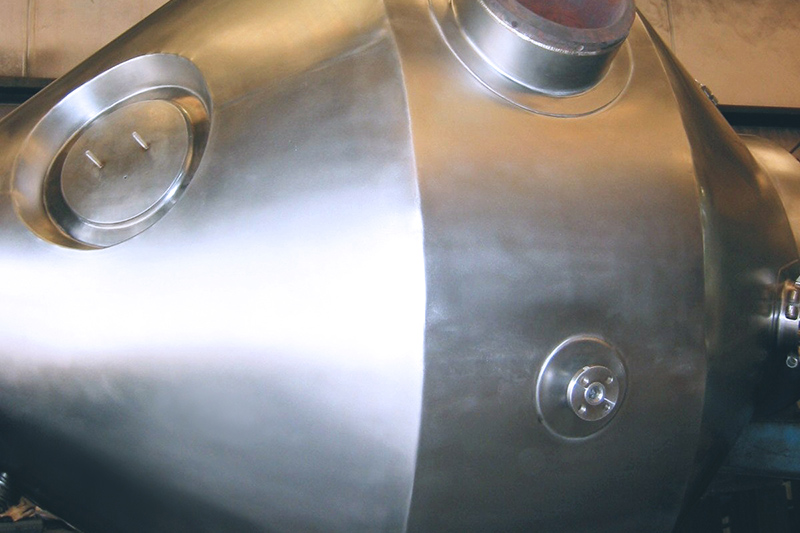

No. 3
Grit: 120 RA Range: 40-50
Headline
Add content here.
A semi-polished surface achieved by finishing with the equivalent of a 120-grit abrasive. This finish has a pronounced grit line. Typically used with a No. 3 weld finish.

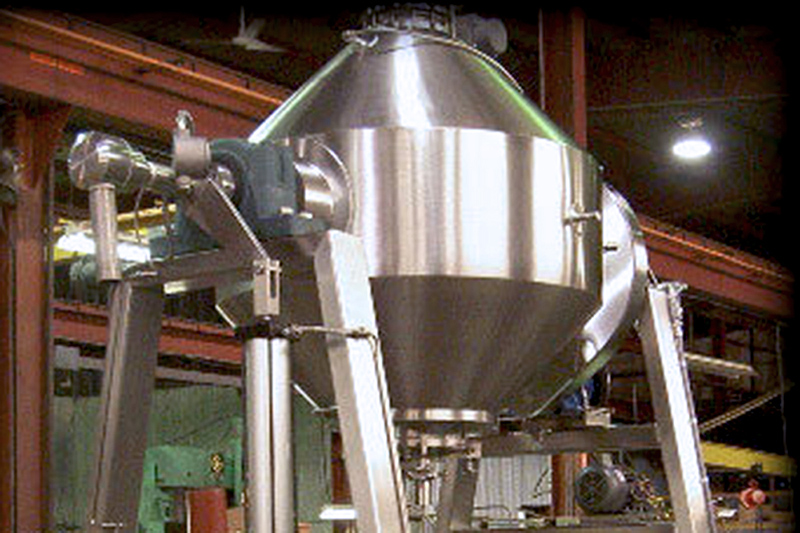

No. 4 Finish
No. 4
Grit: 100 RA Range: 15-30
Headline
Add content here.
A sanitary, general purpose, bright finish with visible grain which prevents mirrorlike reflectivity. Use where sanitary surfaces are required. Meets current 3A standards. Typically used with a No. 4 weld finish
No. 6 Finish
No. 6
Grit: 240 RA Range: 10-15
Headline
Add content here.
Polished finish achieved with the equivalent of a 240-grit abrasive. Finer grit lines and higher reflectivity than No. 4 finish. Improved product release, cleanability, and appearance. Typically used with a No. 6 weld finish.

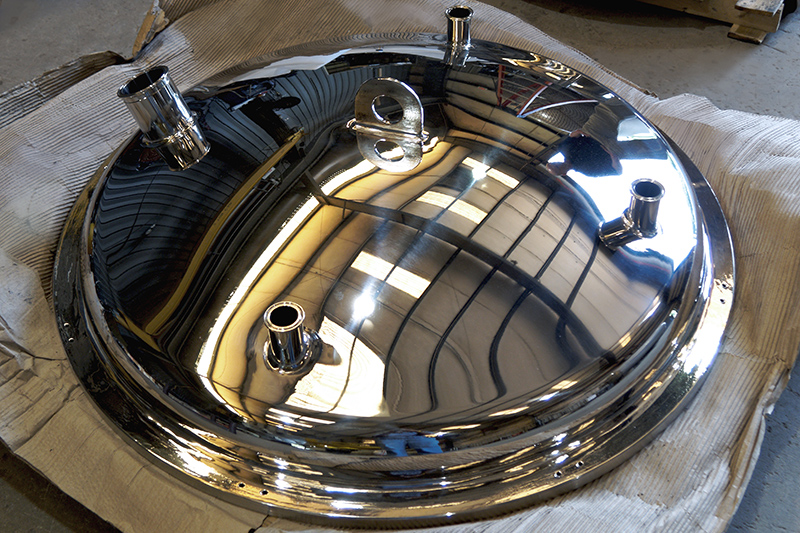

No. 7 Finish
No. 7
Grit: 320 RA Range: <10
Headline
Add content here.
Highly reflective surface obtained with the equivalent of a 320-grit abrasive. Minimal grit lines. Used where product-contact surfaces are critical. Typically used with a No. 7 weld finish.
